Bosch GRD 18V-127 Review: the right-angle drill that finally fits where nothing else does

I’ve been using the Bosch Professional GRD 18V-127 right-angle drill for a few weeks on electrical rough-ins and some plumbing bits, mostly in stud walls and tight corners. I already own a bunch of Bosch 18V tools, so grabbing this bare unit without battery or charger made sense. I wanted something that would actually fit between studs and over joists without me having to mangle my wrists with a normal drill.

First thing: this is not a toy. It’s fairly heavy at around 3.2 kg with a 5.0 Ah battery on it, and it clearly aims at trades rather than casual DIY. The tool is rated at 70 Nm soft torque, with two speeds: 550 rpm for bigger holes and 1,800 rpm for fast rough-ins. On paper that sounded fine, but I wanted to see if it really pulls through a stack of 2x4s without stalling or trying to rip my arm off.

In practice, I’ve used it mostly for drilling through 2x4 studs for cables and some 32–40 mm holes with auger and self-feed bits. I also tried it in metal studs just to see how controllable it is. The 43 mm head size and corner distance are the big selling points here, and that’s basically why I bought it: my standard combi drill just doesn’t fit in a lot of places in old houses.

Overall, I’d say it’s a pretty solid right-angle drill with a few quirks. It has the power and the safety features you want, but it’s not the lightest, and it’s clearly overkill if you only drill the odd hole at home. I’ll break down what worked well for me, where it annoyed me, and whether it’s worth it if you’re already in the Bosch 18V system.

On the value side, it really depends on your situation. As a bare tool, the GRD 18V-127 is not cheap, but it sits in the same ballpark as other pro-grade right-angle drills from big brands. If you already have Bosch 18V batteries and chargers, picking up just the tool makes sense, and the price feels reasonable for what it offers: strong torque, compact head, brushless motor, and KickBack Control. In that context, I’d say it’s good value for money for someone who actually uses it regularly.

If you’re coming from zero and have to buy batteries and a charger on top, the calculation changes. A couple of 5.0 Ah packs plus a charger can easily push the total cost into a range where you might ask yourself if you really need this specific tool. For an electrician, plumber, or carpenter doing frequent rough-ins, the time and hassle it saves in tight spots probably justifies it. For a casual DIYer drilling a few holes a year, it’s overkill, both in price and capability.

Compared to cheaper, non-pro right-angle drills, the Bosch clearly brings more power and durability, but you pay for it. Those cheaper tools often struggle with bigger bits and die faster under heavy use. Here, you’re paying for something that feels like it will handle real job-site abuse and still work next year. For me, using it on regular jobs, that trade-off is acceptable.

So, in plain terms: if you’re a trade user already in the Bosch 18V ecosystem, the value is pretty decent. If you’re starting from scratch or only doing light DIY, there are cheaper and more sensible options, and this one might feel like spending too much for what you actually need.

The main design point here is the compact right-angle head. Bosch quotes a 43 mm corner distance, and in real life that matches what I felt on site. I could get between 2x4 studs without fighting the tool, and I managed to drill holes for wiring in places where my standard combi drill just physically doesn’t fit. If you regularly work in ceiling voids, under floorboards, or inside stud walls, this design makes sense.

That said, the rest of the body is not exactly slim. Once you slap a 4.0 or 5.0 Ah battery on it, the rear end is chunky. Overall length is decent for a right-angle drill, but you still need some room behind the head to hold it properly. In tight corners I sometimes had to hold it a bit awkwardly to get the right angle and pressure. It’s a trade-off: compact head, but the body and battery still take up space, and there’s no way around that with an 18V tool.

The controls are laid out sensibly. The two-speed switch on top is easy to reach and stiff enough that you don’t change it by accident. The forward/reverse selector is standard Bosch and can be operated with gloves. The trigger is large and offers good control over speed, which matters when you’re trying not to overdrive a big auger bit in old, knotty timber. I didn’t feel like I had to fight the ergonomics, which is good.

Overall, I’d say the design is practical but not compact in a global sense. The head is genuinely small and useful, the rest of the tool is fairly bulky and heavy. It makes sense for what it does, but if you’re hoping for a super light, ultra-compact toy, this isn’t it. It’s a right-angle workhorse, not a pocket drill.

Since this version comes without a battery or charger, how it behaves will depend heavily on what pack you stick on it. I mainly used a Bosch 18V 5.0 Ah and occasionally a 4.0 Ah. With the 5.0 Ah, I managed a full afternoon of drilling 20–30 mm holes in studs, maybe 60–80 holes in total, before the battery dropped to one bar. That’s with some breaks and not continuous abuse, but it gives you an idea. For typical rough-in sessions, one 5.0 Ah is okay, two is comfortable.

Power-wise, I didn’t notice any major drop in performance until the battery was almost empty. The brushless motor helps with efficiency, and it doesn’t waste energy as heat as much as older brushed tools. On a 4.0 Ah pack, runtime is obviously shorter, but still decent for smaller jobs or punch-list work. I wouldn’t bother with anything smaller than 4.0 Ah, though; the tool itself is heavy enough that pairing it with a tiny battery doesn’t really make sense.

The downside is the overall weight with larger batteries. With a 5.0 Ah or ProCore 5.5 Ah, the drill feels back-heavy if you’re working overhead or at weird angles for a long time. After an hour of ceiling work, you do feel it in your forearms. So yes, the bigger batteries give you the runtime you want, but they also add to the fatigue, and there’s no way around that with an 18V platform.

In short: battery life is good enough for professional use as long as you have at least one spare pack. If you’re already in the Bosch 18V ecosystem and own a couple of 4.0/5.0 Ah batteries, you’re fine. If you’re starting from zero, you need to factor in the cost of a proper battery setup, otherwise you’ll end up frustrated swapping a small pack every 20 minutes.

Build quality is in line with what I expect from Bosch Professional. The housing feels solid, nothing rattles, and the head doesn’t show any play after a few weeks of regular use. I’ve tossed it in the van, banged it against studs, and used it in dusty conditions. So far, no weird noises, no wobbly chuck, and no signs that it’s going to fall apart. It gives a clear impression of being built for job sites, not just the odd weekend project.

The metal components around the head and chuck feel robust. The chuck itself grips bits properly and doesn’t loosen easily. I used it with auger bits, spade bits, and hole saws, and never had a bit slip out under load. The brushless motor is another plus for durability, since there are no brushes to wear out. Usually that means less maintenance and better long-term reliability, assuming you don’t abuse it constantly at the limit.

That said, I wouldn’t call it indestructible. The plastic body will still show scratches and marks pretty quickly if you’re rough with it. Also, there’s no obvious rubber overmolding on some impact zones, so if you drop it from a ladder onto concrete, I wouldn’t be surprised to see some damage. I didn’t do any deliberate drop tests, but from normal job-site abuse, it held up fine.

Overall, in terms of durability, I’d rate it pretty solid for professional use. It feels like it will last several years in a trade environment if you don’t treat it like garbage. Just don’t expect it to look pretty after a few months; it’s clearly made to work, not to stay clean and shiny.

This is where the GRD 18V-127 actually earns its keep. The brushless motor and 70 Nm soft torque are not marketing fluff; you really feel the power. In low speed (550 rpm), I pushed a 32 mm auger bit through 2x4 studs repeatedly without it stalling. It slows a bit if you lean on it too hard, but it keeps going, and most of the time the limit is your wrist, not the motor. For rough-ins, I’d say it’s more than enough for typical wood framing work.

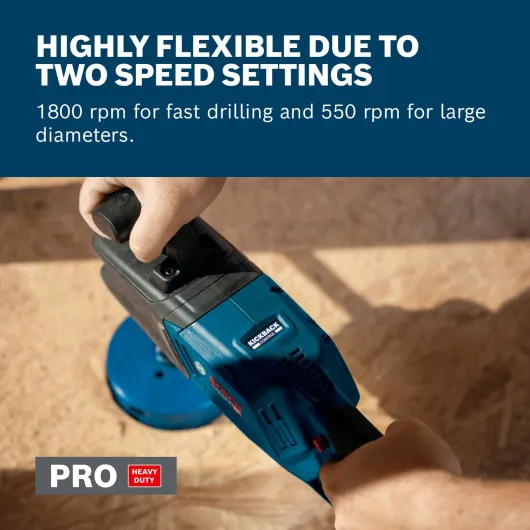

In high speed (1,800 rpm), it’s meant for smaller holes and faster progress. I used it for 10–16 mm holes for cables and some pilot holes in metal studs. It drills fast and clean, and the speed control through the trigger is good. You can start slow and ramp up without the bit skating all over the place. I didn’t notice any overheating or weird noises during normal use, even on longer series of holes.

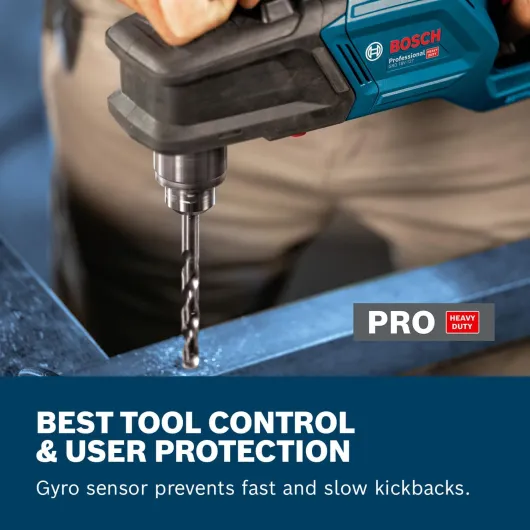

The KickBack Control does kick in when a bit jams hard, especially with self-feed bits. When it trips, power cuts pretty abruptly. It saved my wrist a couple of times when I hit nails or knots. The flip side is that it can also cut out in awkward positions where you’d prefer a bit more torque before shutdown. Personally, I’d rather have it a bit sensitive than deal with a sprained wrist, but if you’re used to older drills with no safety, it takes a bit of getting used to.

Overall, performance is strong and reliable. It’s not a speed demon like a full-size hole hawg, but for 2x4 stud work and typical site tasks, it absolutely gets the job done. If anything, for lighter DIY jobs it might feel like overkill, but for regular trade use, the power level is right where it should be.

Out of the box, it’s very simple: you get the bare tool only. No battery, no charger, no bits, no side handle, no case in my version. Just the right-angle drill. If you’re new to Bosch 18V, that’s important: you’ll need to budget for at least one 4.0 or 5.0 Ah battery and a charger, otherwise this thing is a paperweight. For me it was fine because I already have several ProCore and standard Bosch 18V batteries lying around.

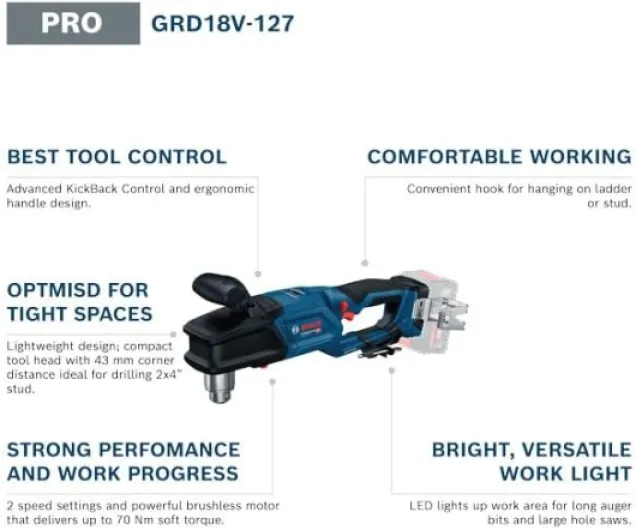

The drill itself is built around an 18V brushless motor, with a claimed 70 Nm soft torque. Two mechanical speed settings: 1,800 rpm for fast small holes and 550 rpm for larger diameters. Bosch advertises it as optimised for drilling through 2x4 studs, with a 43 mm corner distance. That basically means the head and chuck assembly is small enough to fit between standard studs, which is exactly what I used it for on site.

Controls are pretty typical Bosch Professional. You get a big variable-speed trigger, direction switch, and a mechanical two-speed selector on the top. There’s also KickBack Control, which is Bosch’s safety feature that cuts power if the bit jams and the tool tries to twist violently. This is useful on a right-angle drill because these things can easily twist your wrist when a self-feed bit bites too hard in wood.

So in terms of presentation: it’s bare-bones but focused. No useless extras, just the drill built for tight spaces with enough grunt for real work. If you want a full kit with batteries, this specific reference isn’t it. If you’re already in the Bosch 18V lineup, it slots in quietly and does its thing without much setup. Nothing fancy, but functional.
